Glycol Dehydrators & BTEX Units
Glycol Dehydration Systems
Energy Weldfab manufactures a complete line of glycol dehydrators.
We build Packed, Bubble Cap Tray, and Structured Packed Towers. Please Contact a Sales Team Member for Pricing and Availability.
To adequately size a unit for optimized performance, we will need
Inlet Gas Temperature
Inlet Gas Pressure
Gas Flow Rate

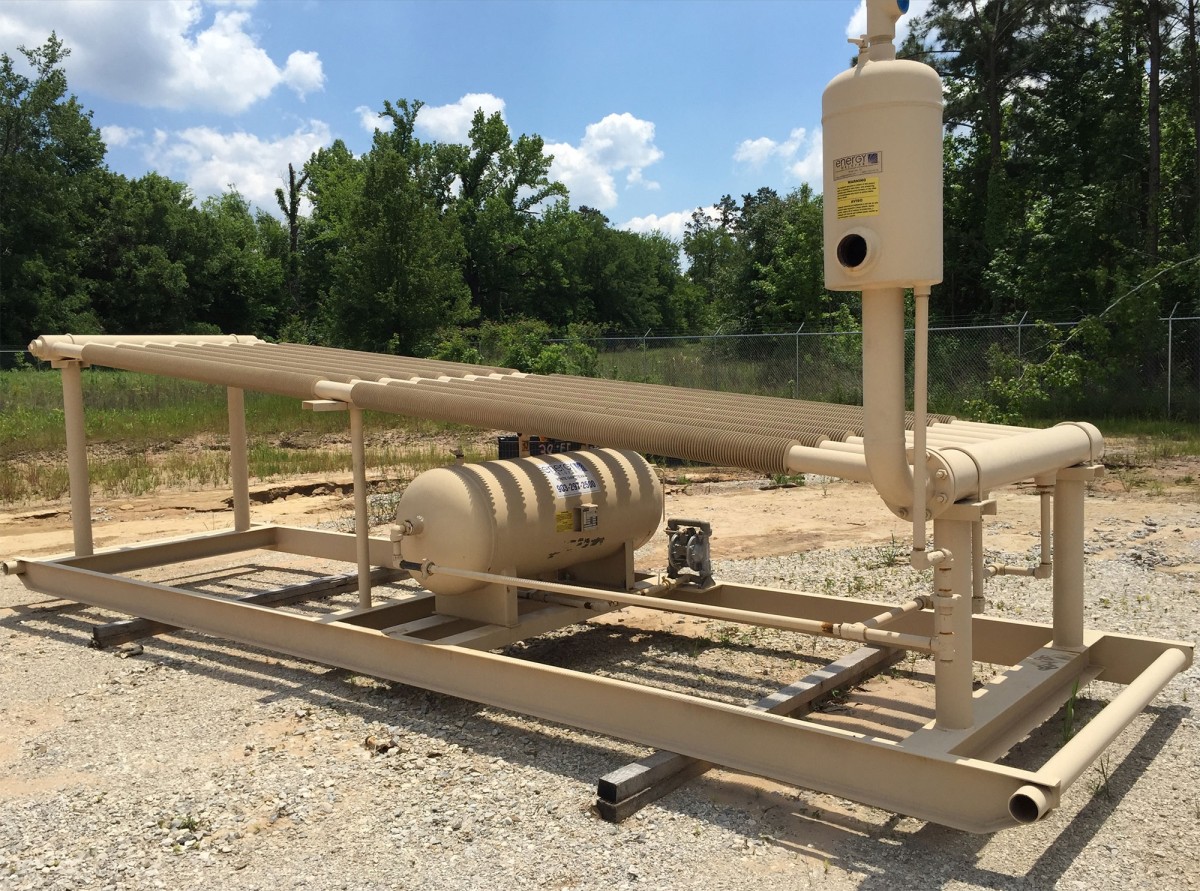

BTEX Units
Capture benzene, toluene, ethylbenzene and xylene (BTEX) and other volatile organic compounds (VOCs) from the still column of triethylene glycol (TEG) regenerators. They also reduce operating costs by recovering sellable condensates and using VOC vapors for burner fuel.
REGENERATOR STANDARD COMPONENTS
- Removable firetube with flame arrestor burner
- Removable still column and smoke stack
- 1-1/2" thk insulation with aluminum jacket
- Kimray t-12 temperature controller
- Kimray t-12m high-temperature shut-down with manual reset
- Burner manifold, meco supply gas regulator, Fisher type 64
- Main burner and pilot block valves
- 50 deg. f. - 550 deg. f. thermometer with thermowell
- Kimray glycol pump with "y" strainer on pump suction, ball check
- Valve on pump discharge
- Shell and tube type glycol to glycol heat exchanger
- Low-pressure glycol filter
- Skimmer connection with ball valve on accumulator section
- Sight glass with gauge cocks on accumulator section
- Stripping gas installed in accumulator section
- Stainless steel instrumentation tubing
- Absorber tower
- Pipe in pipe glycol to gas heat exchanger
- Integral scrubber section
- Liquid level controller
- 1" high pressure dump valve
- Relief valve
- 0 - 250 thermometer with thermowell
- 0 - 2000 psi pressure gauge with isolation valve
- Stainless steel instrumentation tubing
- Reflex gauge glass assembly with valves
